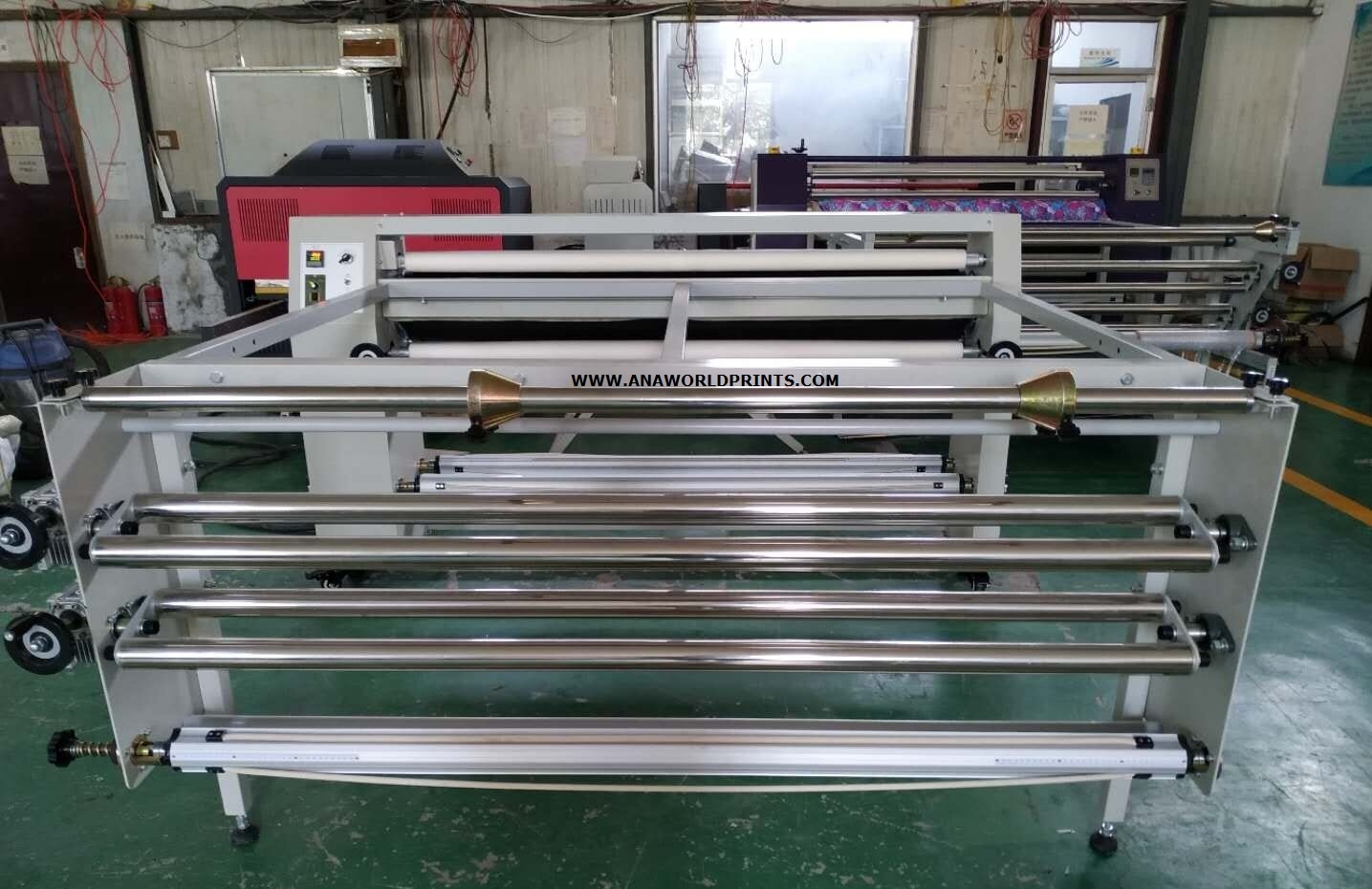

1.8m 6feet Electric Roller type heat transfer machine

TECHNICAL PARAMETERS

---

Model:                                    YH-1800

Max. Paper Feeding:               1800mm

Speed of transfer:                   100-300m/hour

diameter of the roller:             220mm

Max Material length:               unlimited

Support shaft diameter:          65mm(4 pieces)

mode of heat transfer:             automatic

Power Supply:                         220V(110V,380V for optional

Motor power :                         500W

heating power:                                    7.8KW

Machine size:                          2370mm*550mm*1310mm

Gross weight:                          720KG

Packing size:                           2550mm*780mm*1380mm



Relevance:

---

1. Transfer blanket temperature can stand 250 Degrees Celsius
2. Heating Type: infrared heating tube heating  (6 pieces).
3. The surface of heat roller is Teflon.

Features:

---

1. The surface of heat roller is Teflon.
2. The the diameter of four blankets Support shaft has increased to 65mm.
3. Motor power increased to 500W.
4. The machine equipped with 4 castors + fixed feet.
5. The one-piece case, the steel plate is thicker than before.
6. The thickness of blankets is 8mm.
7. infrared heating tube increased to six pieces.
8. speed doubled.
9. The front of the machine is fitted with a fabric take-up platform table.

This machine features: This machine is suitable for small  and media scale of fine thermal transfer printing, high speed transfer speed, no chromatic aberration.
